Article nr: 70359

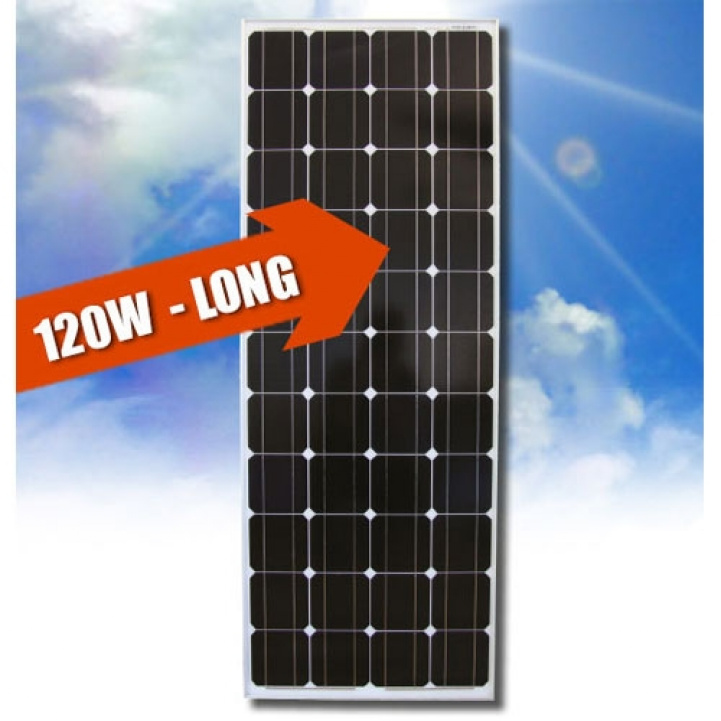

LTC Solar Cell Long 120W


The solar panel has been designed to withstand the tough Nordic climate we may be exposed to. Temperature range -25 to +80 degrees.
€ 173.01
LTC
Add to cart
Make your choices
8 + in stock
More than 5 ( in stock)
In stock
Företag
  •  Fast deliveries
  •  Knowledgeable staff
  •  Over 50 years of experience
  • Product information
  • 120 watts solar panel. Our solar panels are designed to withstand the tough Nordic climate we may be exposed to. Temperature range -25 - +80 degrees. We provide a performance guarantee on our solar panels as follows: 90% for the first 10 years and at least 80% for a total of 25 years.

    There are 2 types of solar panels constructed with an aluminium frame, Monocrystalline (Mono) and Polycrystalline (Poly). Mono is recognised by its bright blue, almost black colour, while Poly has a more speckled blue hue. Mono cells consist of single crystal blocks which gives them a higher efficiency due to purer silicon than Poly cells which have many small crystals.

    This is particularly noticeable in cloudy weather and when the sun does not have a direct angle to the panel (indirect solar radiation). Mono cells generally have a longer lifespan.

    Specifications

    Rated Maximum Power (Pmax): 120W

    Tolerance: 0~+3%

    Voltage at Pmax (Vmp): 19.5V

    Current at Pmax (Imp): 6.16A

    Open-Circuit Voltage (Voc): 24.50V

    Short-Circuit Current (Isc): 6.94A

    Nominal Operator Cell Temp (NOCT): 50C

    Maximum System Voltage: 1000VDC

    Maximum Series Fuse Rating: 15A

    Operating Temperature: -40C to +86C

    Application Class: A

    Size: 1330 x 510 x 35mm

    Weight: 8.2 kg

    Monocrystalline: YES

    Mounting rail and cable entry included: NO

    Cable length: 6M

  • Characteristics
  • Weight: 8,2 Kg
    Depth (mm): 3,5 mm
    Length (mm): 1330 mm
    Width (mm): 510 mm
    Power: 120 W
