Wera Awning Side 250

Installation
The end is designed for awnings that have a depth of 250 cm.

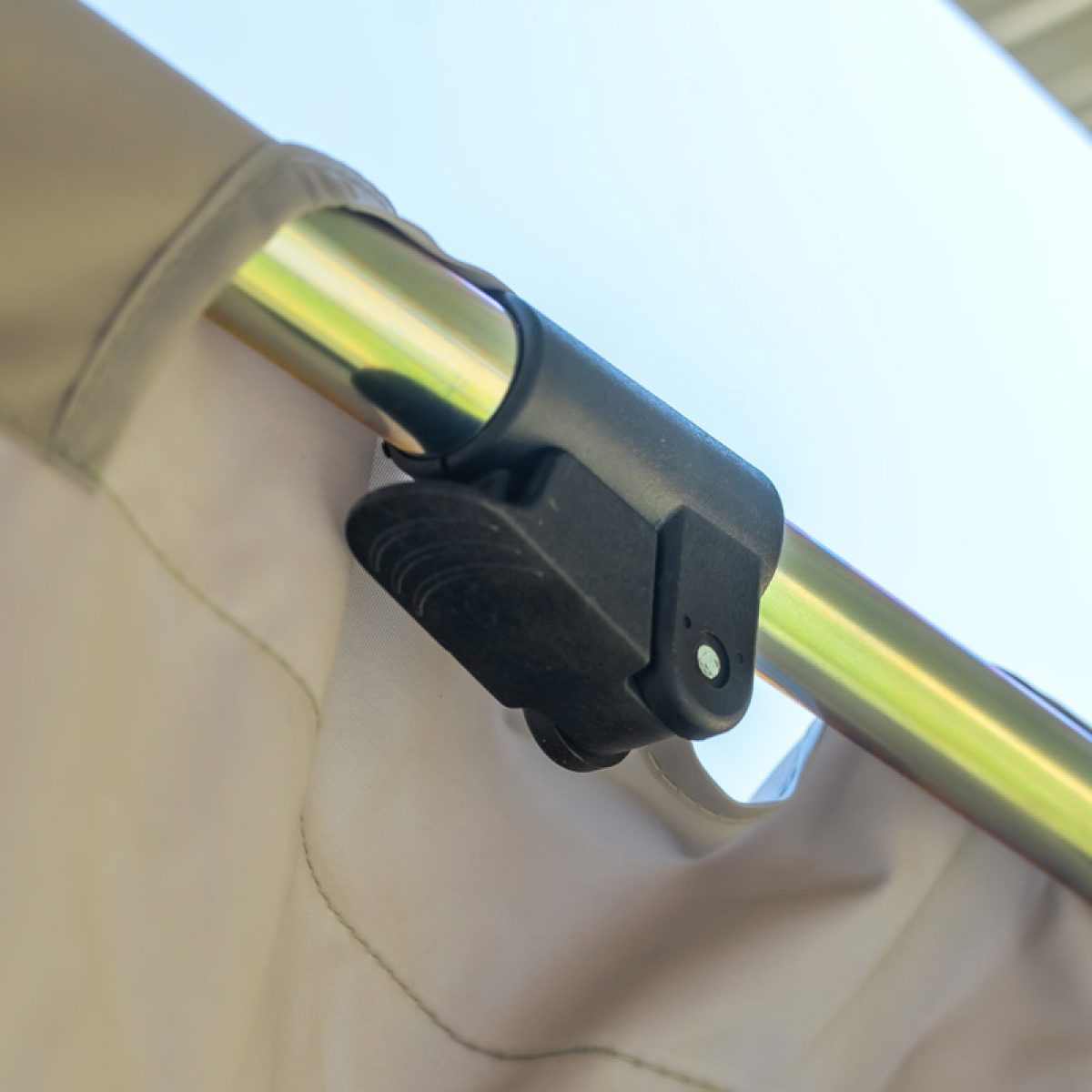

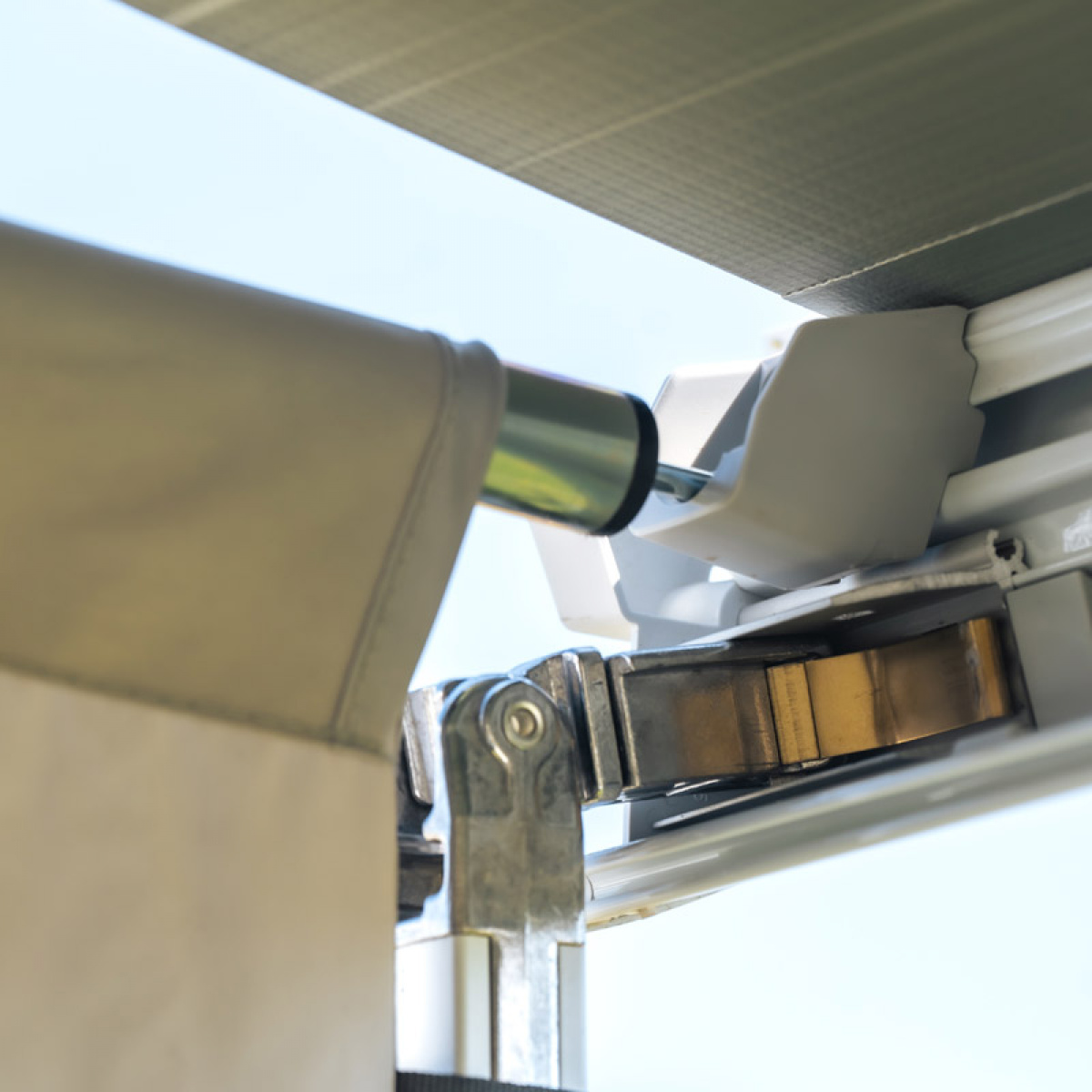

It is hung using a supplied crossbar that allows for universal mounting. The rear part of the crossbar is pressed against the awning's bag/internal box with a bracket & against the aluminium cassette that is extended, a small hole of 4mm needs to be drilled to insert the pin from the crossbar so that it remains in place. The crossbar is adjustable. Then, simply hang the end & secure it with the supplied ground fittings. For support from the awning's legs, tie the straps around the awning leg.

Mounting height from ground to awning: 225-245 cm.
Length of awning end: Approximately 235 cm. (The physical length for awnings labelled 250 cm in depth is always slightly shorter, around 235 cm).
Weight: Approximately 6 kg
Dimensions when packed, approx: 120x40x15 cm
Material: Polyester
Option for curtain: No

Compatible with the following awnings
Fiamma Caravanstore XL
Thule Omnistor 1200
Fiamma F45*
Fiamma F80*
Thule 5200*
Thule 6300*
Or other awnings that are 2.5 meters deep.
* Applies only when mounted at a height from the ground between 225-245 cm.

Sold: Individually, choose between right or left.
Right = Towards the pull / cabin
Left = Towards the rear of the vehicle

Delivery includes: Awning end, crossbar, ground fittings, storage bag.

Please note: This product is only an awning end, not a complete awning tent. Not suitable for awnings with a depth other than 2.5 m.
