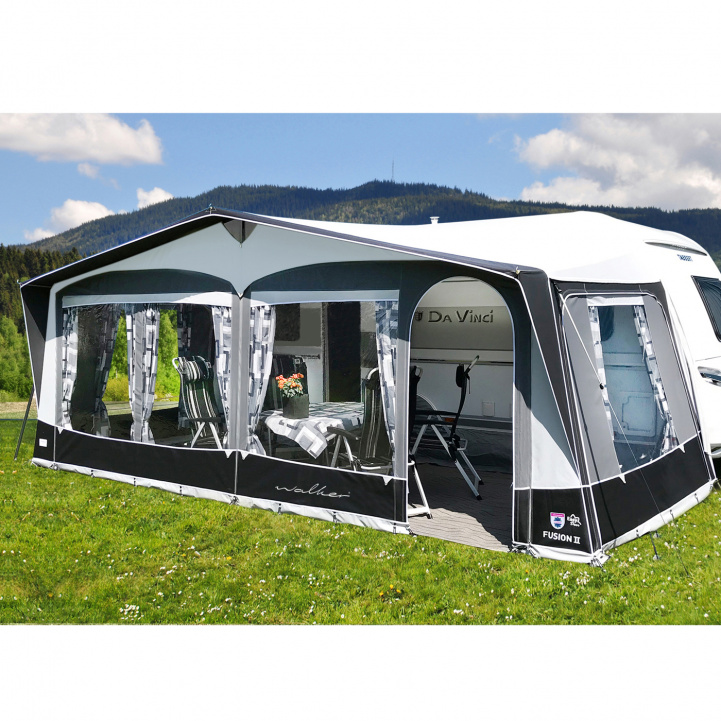

Thanks to its harmonious colour combinations, the Fusion is an attractive and well-designed awning that provides campers with that little extra.
The model is available with a steel MAX or fibreglass MAX frame.
Easy Door
With the clever Easy Door function, you can choose where you want to place the door. The front walls can swap places with each other, allowing for a change in the entrance's location.
FRAME
STEEL 25mm
Standard 3 crossbars
– From size 885: 2 extra crossbars
– From size 975: 2 extra front support poles
- Depth: 240 cm
- Roof: Ten Cate coated polyester; 240 g/m2
- Front and gables: Ten Cate coated polyester; 240 g/m2
- Optional: Fibreglass MAX frame; roof poles 30.5 mm!
- Ventilation: at the top of the front sections and one in the gables
- All front and gable sections are foldable and removable with zippers
- The front pieces can be swapped around: Easy-Door!
- Weight: size 900 cm approximately 45 kg
- Including Easy-Setup mounting brackets without screws!
- Curtains, ground skirt, and wheel cover included!
- Suitable for aerodynamic caravans
A-measurements | Size
825: 810-840
840: 826-855
855: 840-870
870: 856-885
885: 870-900
900: 886-915
915: 900-930
930: 916-945
945: 930-960
960: 946-975
975: 969-990
990: 976-1005
1005: 990-1020
1020: 1006-1035
1035: 1020-1050
1050: 1036-1065
1065: 1050-1080
1080: 1066-1095
1110: 1096-1125
1140: 1126-1155
1160: 1146-1175
