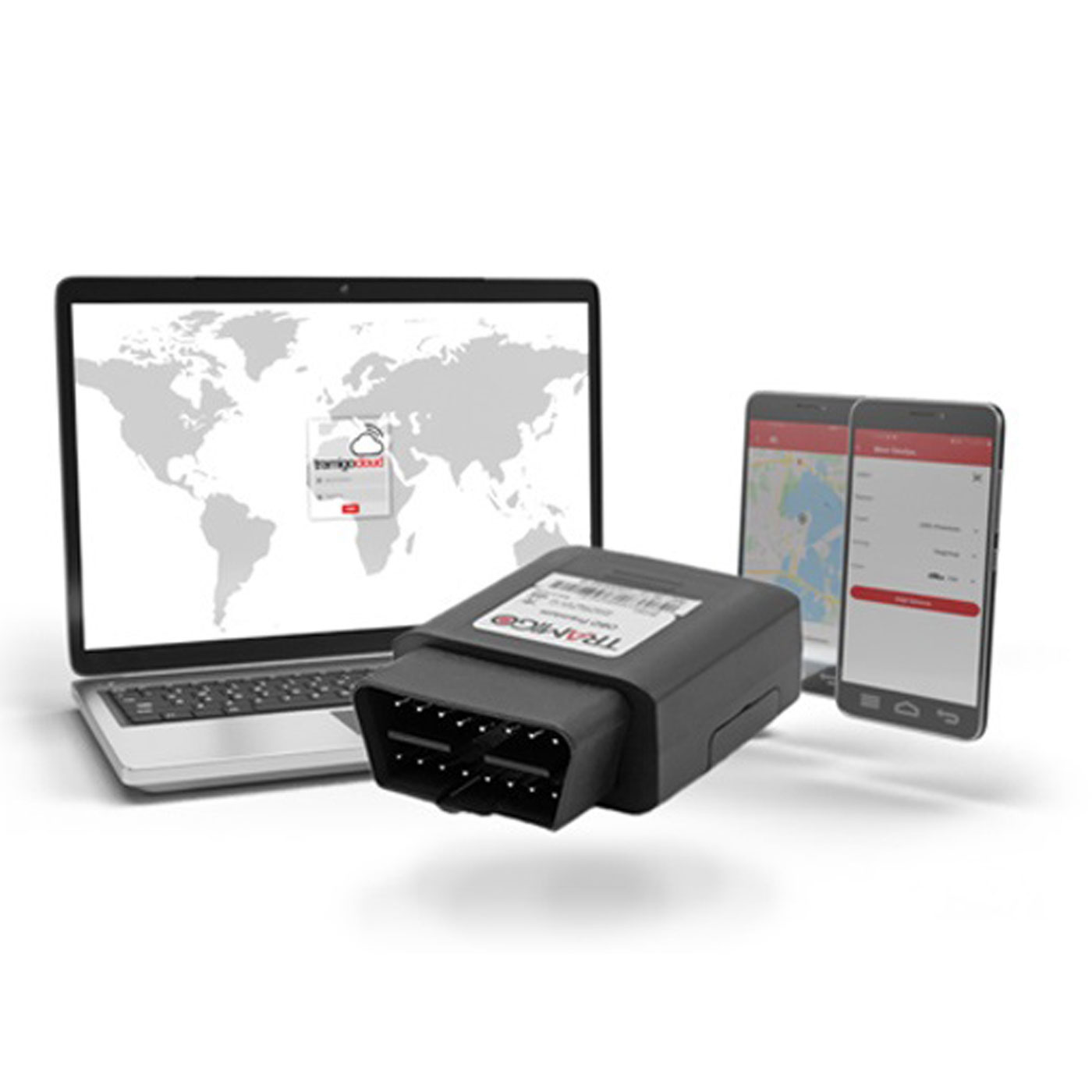

Tramigo OBD

View and reset diagnostic trouble codes (DTC)
Use Tramigo OBD Premium to quickly diagnose your vehicle's health and find out diagnostic fault codes (fuel and air measurement, additional exhaust control, body systems, brakes and traction control, network electricity etc.). View and reset codes that you do not consider critical directly from your TramigoApp user interface to reduce the number of visits to the mechanic. Configure alerts (speed, towing, geo, start/stop, crash etc.) and track lifetime diagnostics (engine, fluids, battery etc.) and much more directly on your TramigoApp with your mobile phone.

Protect your car from catalytic converter theft
Tramigo OBD Premium is equipped with a sensitive motion detector built into the device that helps owners protect their vehicles from catalytic converter theft.
Once you have installed and activated your Tramigo OBD device, you will be able to use your mobile phone to activate the towing alarm function, which sends automatic alerts to your phone if your parked vehicle is moved, towed, or someone attempts to lift the car to access the underside.

Diagnostic functions
✓ Check engine lights  ✓ Fuel and air meter check  ✓ Additional exhaust control  ✓ Body systems  ✓ Brakes and traction control  ✓ Network electricity  ✓ DTC reset  ✓ Engine condition  ✓ Battery voltage  ✓ Engine coolant temperature 

Tracking functions
✓ Geofence  ✓ Out of hours  ✓ Towing alarm  ✓ Speed alarm  ✓ Excessive idling detection  ✓ Start/stop report  ✓ Harsh behaviour monitoring  ✓ Crash detection 

Hardware specifications
Size: 49 mm x 48 mm x 22 mm
Weight: 58 g
Backup battery: Li-Polymer, 60 mAh
Operating voltage: 8V to 32V DC
Operating temperature: -20 to + 80 ℃
Storage temperature: -40 to + 80 ℃
BLE: Supports BLW 4.2 protocol

GNSS specifications
GNSS Type: u-blox all-in-one GNSS receiver
Sensitivity: Autonomous: -147 dBm
Warm start: -156 dBm
Reacquisition: -160 dBm
Tracking: -162 dBm
Position accuracy: Autonomous 2.5m
TTFF: Cold start: 27s average
Warm start: 27s average
Hot start: 1s average

GSM
Frequency: 850/900/1800/1900 MHz
Data transmission: GPRS multi-slot class 33
EDGE multi-slot class 33

One year of use is included; after one year, you will be contacted by Tramigo regarding renewal, which costs approximately 475 SEK per year.
