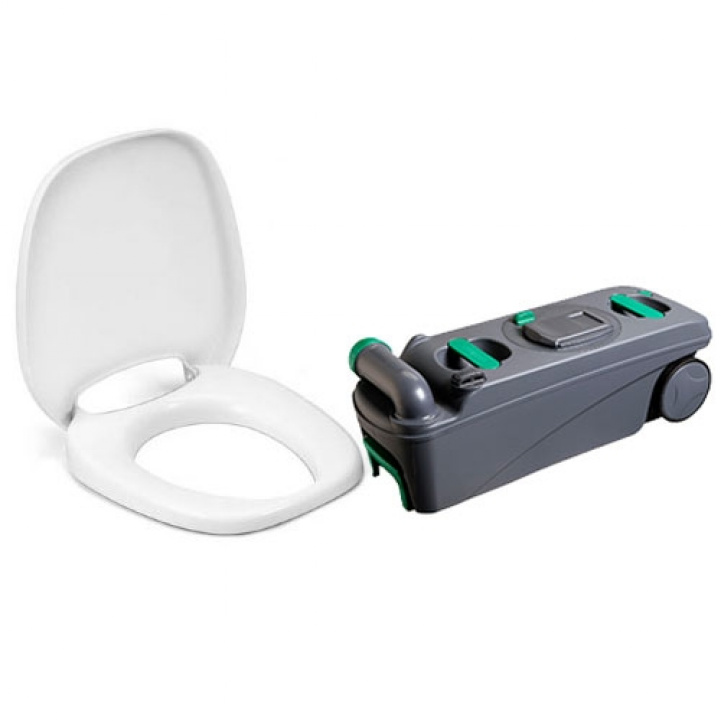

Thetford Fresh Up Set C500

.

Fits: Thetford toilets in the C500 series. C502C, C502X & C503L. Even if your current tank lacks wheels & a handle, this product will replace your tank.

Can I use my regular household cleaning products?
No. Regular household cleaning products can cause permanent damage to seals and other toilet components. Therefore, Thetford has a wide range of specially developed toilet care products.

Why can't I remove the waste tank?
Check if the blade is (partially) open. If the blade is stuck, first loosen the lid from
the outlet pipe.

What do I need to know about the toilet when driving?
To prevent leaks and water damage to your caravan or motorhome, avoid driving
with water in the toilet bowl, with a flush water tank filled to more than half, or with a
waste tank filled to more than three-quarters.

What toilet does my vehicle have?
Open the hatch where the waste tank is located, and there should be a label with Thetford's model number on the toilet bowl. Sometimes there is also a product label on the back of the toilet bowl.

How do I empty the waste tank?
1. Check the level indicator to see if the tank needs emptying.
2. Move the waste tank using the wheels and handle to the campsite's designated emptying point.
3. Twist the outlet pipe and remove the lid.
4. Press and hold the valve button with your thumb while the outlet pipe is directed downwards. Empty the waste tank.

Smart benefits
- Outlet pipe, allows the tank to be emptied in a simple and clean manner.
- Valve button, prevents splashing when the tank is emptied.
- Blade, seals the tank so that the bathroom continues to smell fresh.
- Wheels & Handle, makes it easy to transport the tank to the emptying point.

Preparation before use
1. Open the service hatch on the outside of the vehicle and remove the waste tank.
2. Add the correct dose of water and Aqua Kem Blue (Sachets or liquid) or Aqua Kem Green (Sachets or liquid) for perfect odour control and easier emptying.
3. Slide the cassette back in, and you are ready.

Technical data
Weight: 3 kg
Volume: Approx. 19.5 L

Delivery contents: Waste tank on wheels, toilet seat, lid & installation manual.
