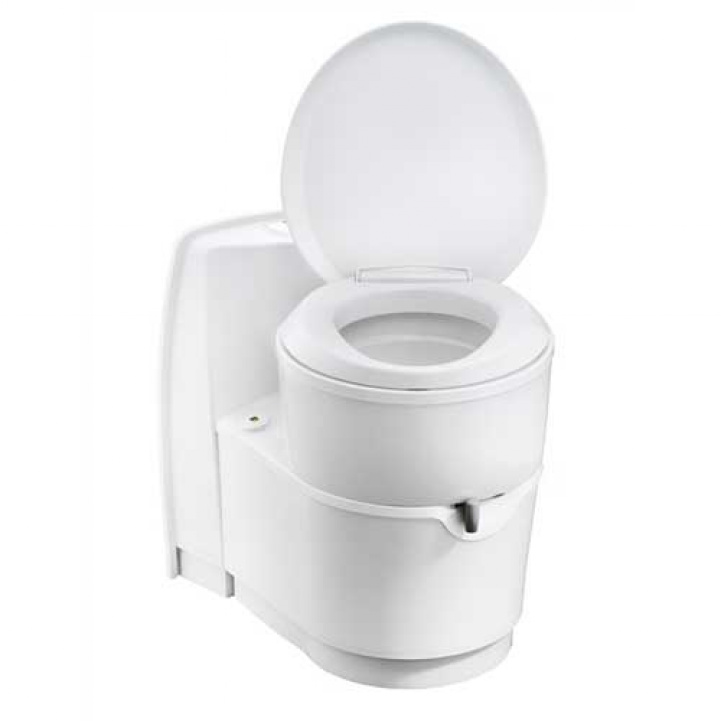

Thetford Cassette Toilet C224-CW Manual

A built-in cassette toilet consisting of two parts: a permanently mounted toilet and a removable waste tank. An indicator shows when the tank needs to be emptied. Emptying is done by removing the tank via a hatch on the outside of the vehicle. Thetford's C220 series consists of 3 different models: C223-S, C223-CS, and C224-CW.

Advantages:

• Best seating comfort.
• Lightweight, high-quality, and durable plastic.
• Quiet and powerful flushing system that covers the entire bowl.
• Waste tank with telescopic pull handle and wheels.
• Valve button for splash-free emptying.
• Automatic pressure relief valve prevents gas build-up and ensures splash-free opening.
• Built-in swivel emptying pipe.
• 3-year warranty.

Technical information:

• Dimensions (HxWxD), mm: 727 x 394 x 580
• Toilet bowl: Plastic
• Seat height, mm: 492
• Central water connection: No
• Flushing system: Manual
• Waste tank volume, litres: 18
• Flush tank volume, litres: 9
• Waste level indicator: Yes
• Waste tank on wheels: Yes
• Water refill hatch: Required, not included. TK0249
• Waste tank hatch: Not included
• Weight, kg: 8
