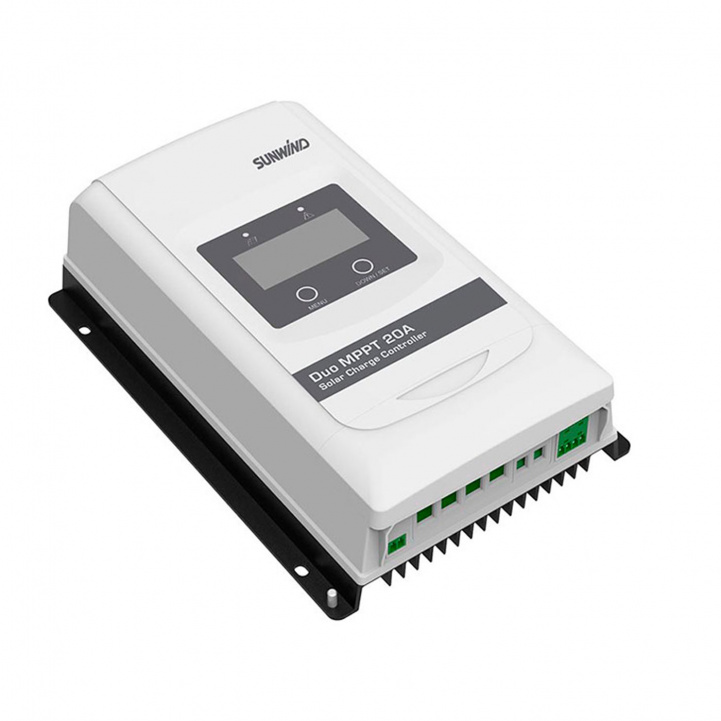

Advanced solar charge controller with MPPT charging and the ability to charge two separate battery banks. Perfect for example in a motorhome to charge both the leisure and starter battery.
- Charge current: max 20 Amp
- Dimensions: 244 x 158 x 63 mm
- Max voltage input: 100V
- Temperature sensor included.
- 12/24V battery bank
Battery circuit 1 can be set for all common battery types; Sealed (AGM), GEL, Flooded (Lead Acid) and Lithium. (LiFePo4, LiNiCoMn)
Battery circuit 2 is dedicated to the starter battery and is NOT adjustable for different battery types, only for Flooded (Lead Acid)
Batt 2 provides maintenance charging (trickle charge) at 1A
Batt 1 & 2 must have the same battery voltage!
External display MT-11 with 1.5 m cable is available as an accessory. See Accessories.
Technical data
Height (cm): 24.4
Depth (cm): 6.3
Width (cm): 15.8
Weight (kg): 1.1
IP class: IP30
Charge current: 20A
Battery voltage: 8.5~32V
Self-consumption: 12mA
Type: MPPT
Suitable for lithium: Yes
Programmable: Yes
Max power input 12 volts: 260W
Max power input 24 volts: 520W
Bluetooth: No
Consumer output: No
Brand: Sunwind
