SUNCONTROL is the charge controller for the solar panel and is fully designed and manufactured by NDS. It handles up to 300W input power, with a maximum charge of 20A. The microprocessor can operate up to four charging stages, including the desulphation phase, which is important as it ensures the extension of the battery's lifespan. The new SUNCONTROL, in the MPPT version SC 300M, allows for maximisation of the solar panel's potential, improving performance by up to 25%
• High-quality soldering to prevent overheating.
• High-quality EVA film for better light transmission.
• New generation reflective glass for better thermal response even at high temperatures.

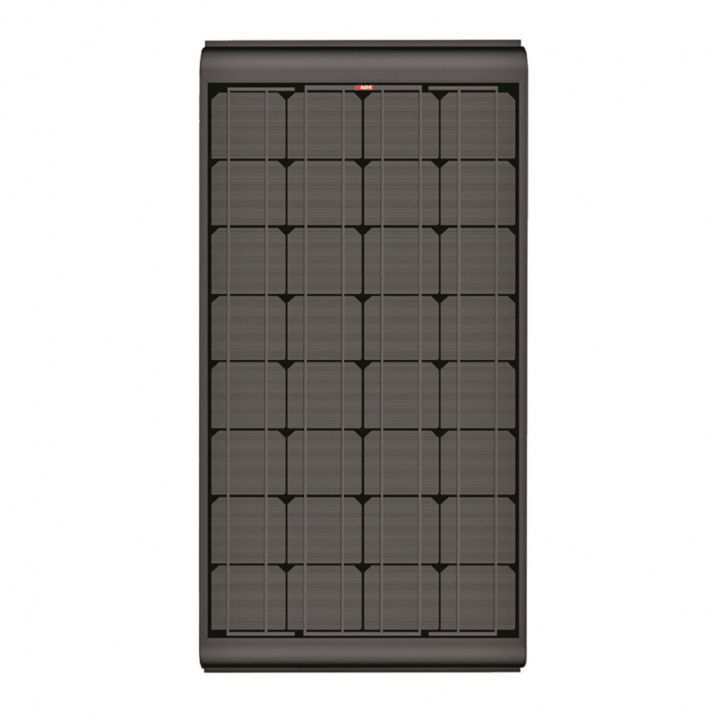

Technical data
• Number of cells: 36
• Type of cells: Monocrystalline
• Voltage: 12 VDC
• Max power: 185W
• Tolerance: ± 3%
• Voltage at max power: 19.9V
• Amperes at max power: 9.3A
• Dimensions (LxWxH): 1645 x 680 x 60 mm
• Weight (panel): 15.5 kg
