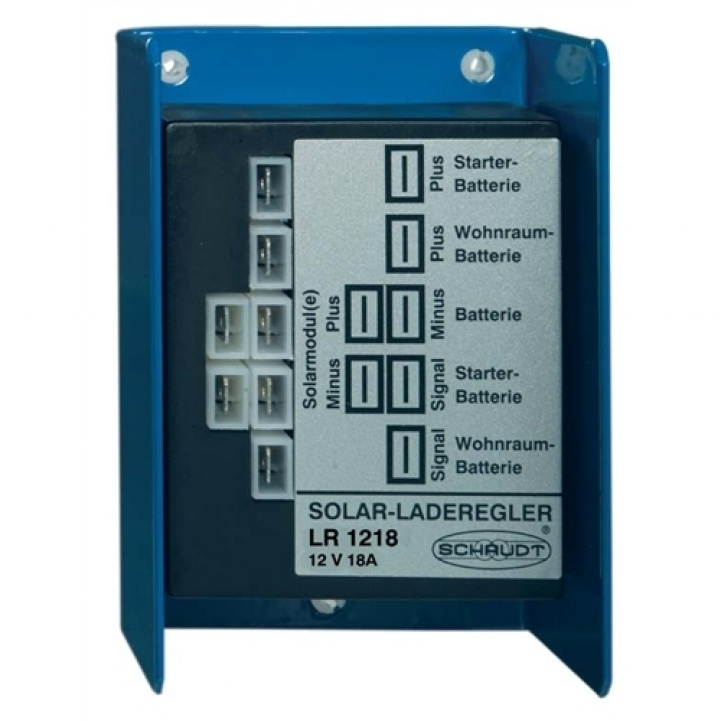

Schaudt LR1218 Solar Cell Regulator

Solar charge controller Schaudt LR1218
regulates the charging voltage from the solar panel.
The controller ensures a gentle charging
of one or two batteries.

Discharge in, for example, darkness is prevented by an integrated reverse diode.
Suitable for solar modules with a total current of 18A and for 12V lead-acid and gel batteries.
Charging curve IU.

Several motorhomes have prepared electrical centres from Schaudt where the connection
of the LR1218 is very simple.
Dimensions: 110 x 75 x 56 mm.
Weight: 160 g.

Cables with connectors for connection to the motorhome's electrical centre are included along with installation instructions.
