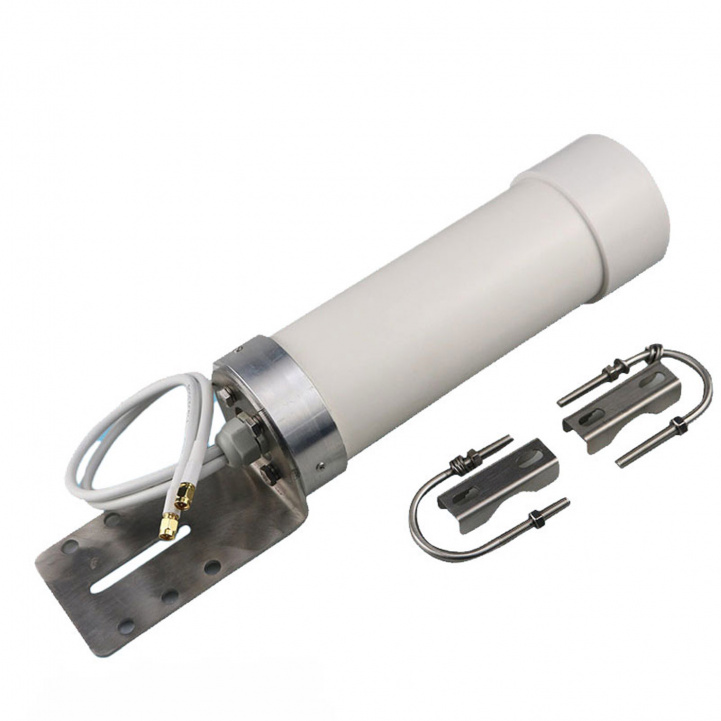

Marine Omnidirectional Antenna 5G/4G/3G - Professional Performance for Marine Use

Looking for an antenna that delivers exceptional performance for your marine connection? Then this Marine Omnidirectional Antenna 5G/4G/3G is the perfect choice for you. This professional antenna is designed to provide reliable signal strength and high speeds, even on the open sea, covering all the major mobile networks – 5G, 4G, and 3G.

Highest Performance and Coverage
With MIMO technology and two SMA connections, you get a powerful, omnidirectional antenna that delivers fast internet even up to 20 nautical miles. By using this antenna, you can achieve speeds over 200 Mbps with a 4G LTE router and an impressive 500 Mbps with a 5G router.

Robust Design for Marine Use
The antenna is built to withstand harsh weather conditions and is IP67 certified to resist both water and dust. With a robust steel mount and a durable plastic and metal construction, this antenna is ideal for installation on boats and other coastal environments. It can be mounted on a mast or directly on a wall/facade, making it flexible for different installations.

Optimal Specifications for Maximum Effect

Frequency Range: 698-960 MHz, 1710-2700 MHz, 3400-3800 MHz, 3800-4200 MHz
Gain: 2 * 8 dBi
Radiation Angle: 360 degrees horizontally and 30 degrees vertically
Maximum Power: 100 W
Temperature Tolerance: -40°C to +65°C

Low Loss and High Efficiency
This antenna is designed for minimal signal loss thanks to the use of copper in the antenna element and an LMR240 cable. The cable length is 30 cm, and for best performance, we recommend complementing with low-loss extension cables. We offer cable lengths of 5, 10, and 15 meters in our webshop.

Durable and Weather-Resistant
The antenna is built to withstand wind speeds of up to 210 km/h and is ideal for marine use. Its thoughtful design makes it both durable and efficient under tough conditions. With its white PVC color, it is both discreet and tough.

Specifications:

Input Impedance: 50 Ω
VSWR: ≤1.5
Polarization: Vertical or Horizontal
Protection Material: PVC
Lightning Protection: DC grounding
Weight: 0.9 kg
Mounting: Fits mast poles Ø35 ~ Ø50 mm

This Marine Omnidirectional Antenna 5G/4G/3G is a clear favorite among boaters and marine users who require a stable and fast connection. With its powerful design, reliable performance, and high gain, it is the ultimate antenna for your marine needs.
