Name: Mammut Mover - for prepared ALKO chassis
Brand: AL-KO
SKU: 64763
Price: 3164.20 EUR
Availability: InStock

AL-KO Mammut is a multi-award-winning manoeuvring system that makes it easy and precise to move and control your caravan or trailer, even on your own and in difficult terrain. Perfect for manoeuvring in tight spaces, the system handles obstacles up to 4 cm and gradients of up to 28%.

Key Features

Precise control and smooth handling

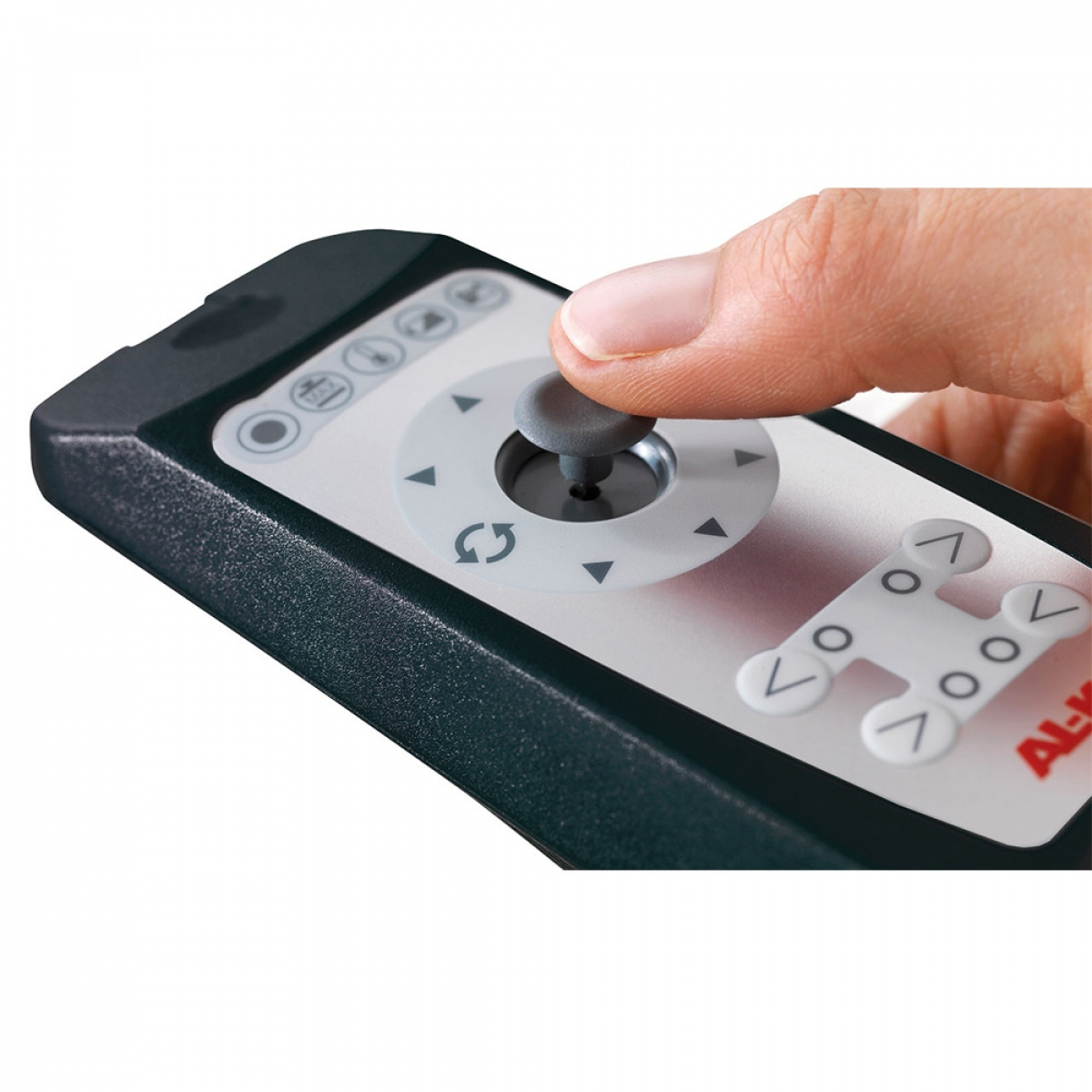

Manoeuvring with cm precision via joystick and stepless speed control (0.2–0.5 km/h).
Electric alignment of the drive units against the tyres with a pressure of approximately 200 kg.
Perfect for coupling and uncoupling in tight spaces.

Power and Performance

Handles obstacles of up to 4 cm.
Maximum gradient: 28% for caravans up to 1.2 tonnes, 16% for caravans up to 1.8 tonnes, 13% for caravans up to 2.25 tonnes.
Strong and reliable motors with efficient heat dissipation for longer manoeuvring.

Safety and Reliability

Immediate stop: Release the joystick and the trailer stops instantly with the brakes engaged.

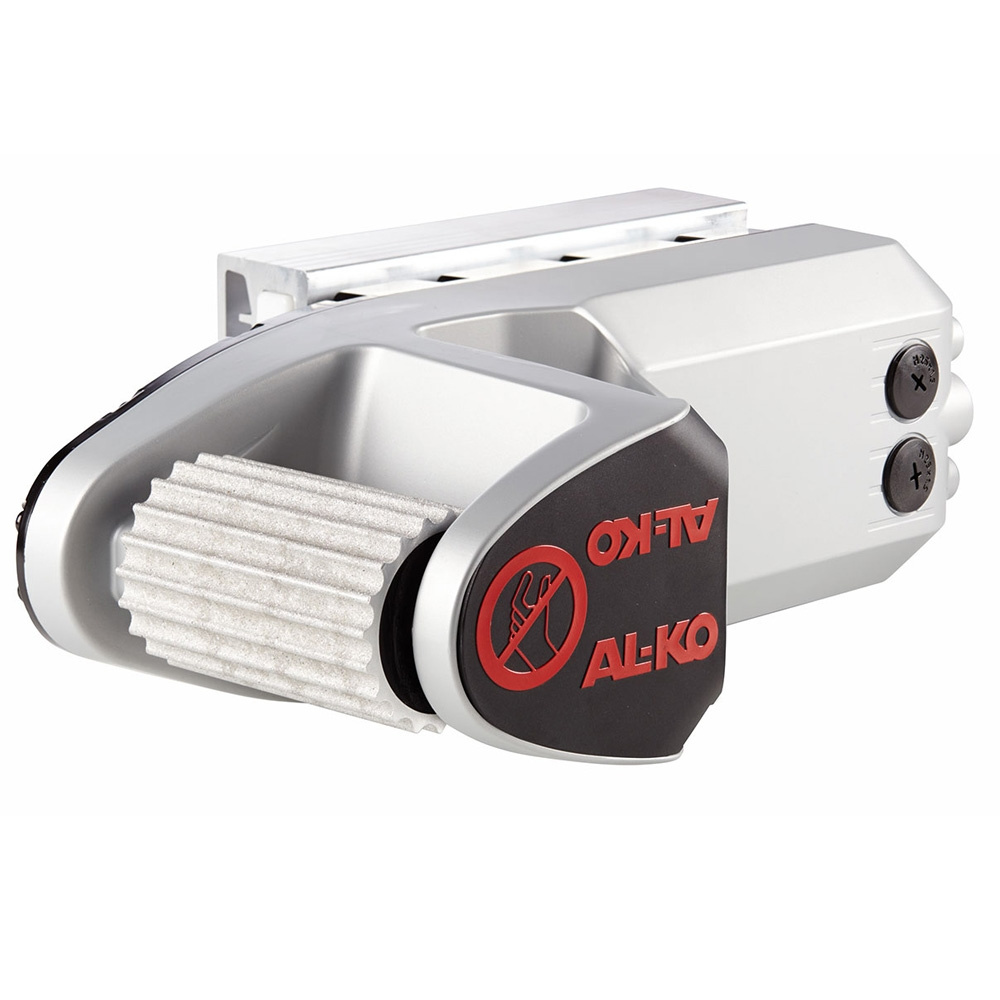

Robust, water-protected drive unit (IP65) for long durability in all weather conditions.
Integrated control electronics in an aluminium housing for extra protection against damage and moisture.
Technical details

Installation:

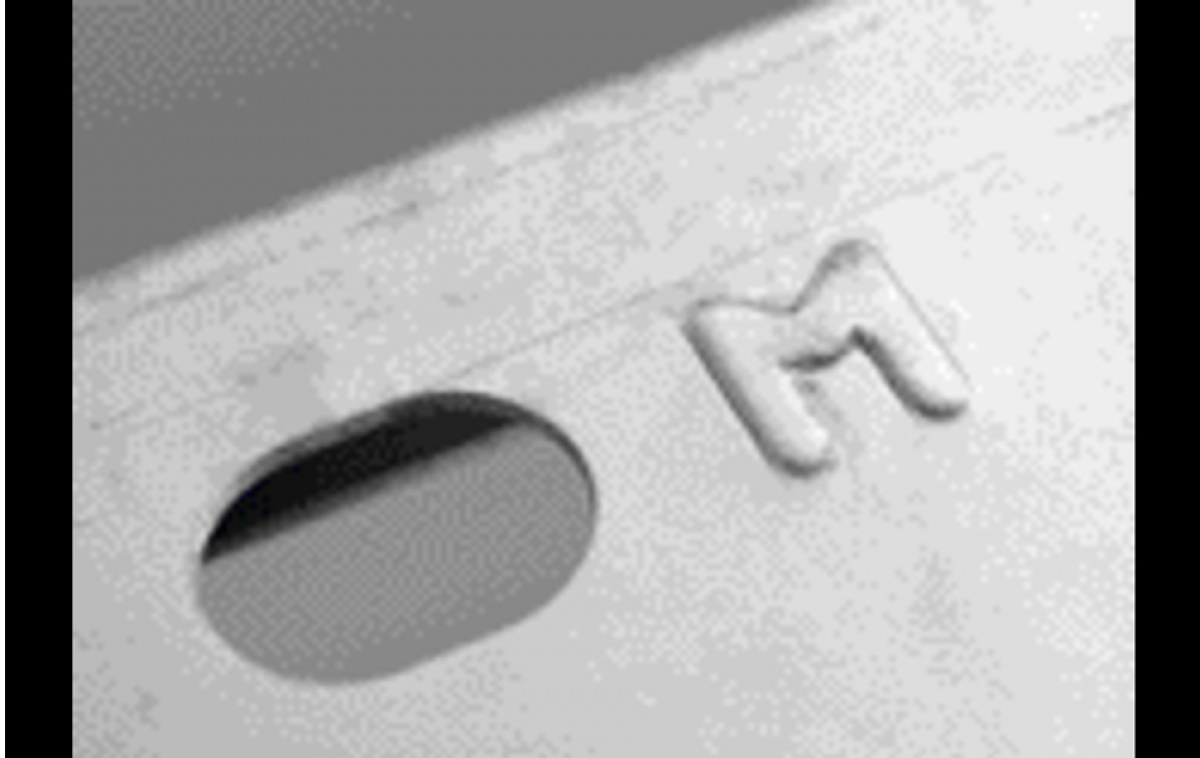

Designed for AL-KO chassis with MAMMUT embossing from the year of manufacture 2010.
Low own weight and no impact on ground clearance when installed between the chassis members.
Easy installation with Plug & Play for quick use.

Power Supply:

Connection to the caravan's battery.
Power consumption: max 120 A (standby 5 mA).

Recommended Batteries:

AGM battery: At least 100 Ah for reserve capacity.
Gel battery: At least 80 Ah.
For spiral cell technology (e.g. Optima): At least 66 Ah.

Advantages of AL-KO Mammut

Precise positioning: Enables smooth manoeuvring and placement in tight spaces.
Jerk-free acceleration: Smooth and stepless movement without interruption.
Maximum contact and ground clearance: Optimal alignment of the drive unit on the wheels.

With AL-KO Mammut, you get one of the most precise and powerful manoeuvring systems on the market. Thanks to innovative technology and high performance, it becomes easy to manage your caravan in all situations – from tight spaces to steep gradients.
