Automatic and intelligent 9-step charging curve.

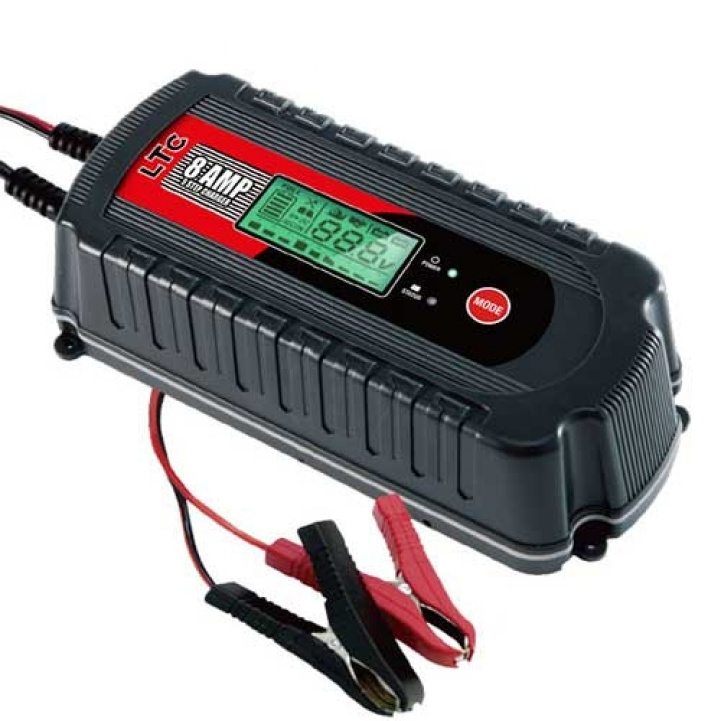

The battery charger is controlled by a microprocessor with a 9-step charging characteristic for charging batteries for cars, motorcycles, scooters, tractors, jet skis, boats, etc.
A microprocessor detects the battery and controls the regulator to provide the correct current and voltage to the battery (charging characteristics). This provides the best charging performance and increases the battery's lifespan.
Charging Characteristics Step by Step
Battery Test & Pre-charging (Step 1)
Check the battery voltage & ensure that the battery connections are secure and that the battery is in a stable position before the charging process begins.
Desulphation (Step 2)
Detects sulphated batteries. Pulsating current and voltage remove sulphate from the battery's lead plates and increase the battery's capacity. If the battery voltage during charging varies by more than 3V (12V mode) or 6V (24V mode), desulphation occurs and then the process continues to step 3 after 4 hours. If the variation is less than 3V/6V, the next step continues after 10 seconds without desulphation.
Soft Start (Step 3)
Initial battery test to determine the battery's condition. If the battery is heavily discharged, the charger selects the soft start step. Charging begins with a lower current until the battery voltage reaches a normal level for charging.
Bulk (Step 4)
The main charging step where the battery receives the majority of the charge.
During this step, the battery is charged to 75-80% by the charger. The charger delivers maximum current until the terminal voltage reaches the level for full charge for a normal battery.
Absorption Charging (Step 5)
Completes the charging up to 100% with a constant voltage. The current is gradually reduced after the current has reached its maximum level.
Reconditioning (Step 6)
Select ""Recondition"" mode, charging with higher voltage to remove sulphate from the battery to extend the battery's lifespan.
Analysis (Step 7)
Tests whether the battery can hold a charge. Batteries that cannot hold a charge should be replaced.
Maintenance Charging (Step 8)
Low constant voltage and minimal charging current, the battery is fully charged.
Pulse (Step 9)
Maintains the charge at 95-100% capacity. The charger monitors the battery voltage and provides a pulse as needed to keep the battery fully charged.
• 5-year warranty
• Charging voltage 12V
• Supply voltage 200-230V 50HZ
• Power supply 5AMP
• Charging current MAX 8A
• Protection class IP65
