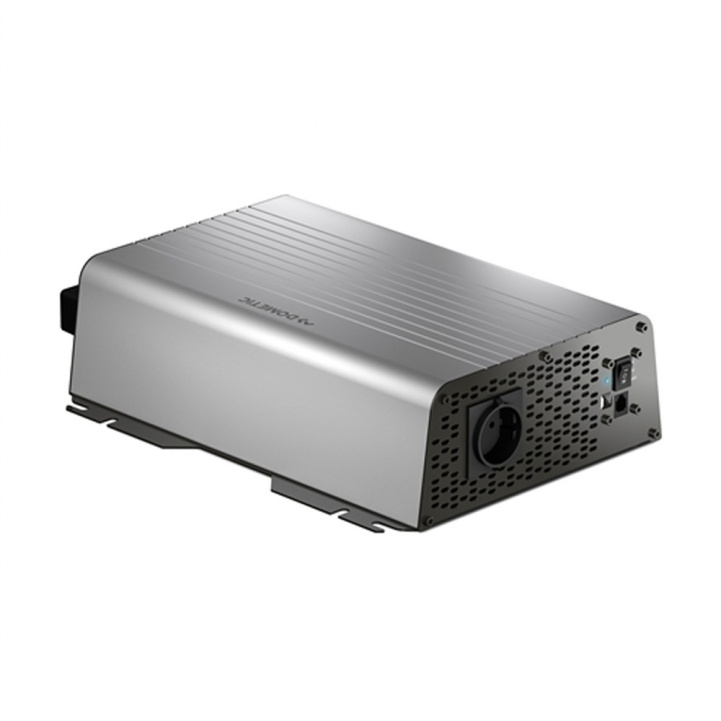

The Dometic SinePower DSP 1512 sine wave inverter converts 12 V DC to pure 230 V AC, making it suitable for all types of appliances, including sensitive ones. Thanks to its wide input voltage range, it also works well in modern vehicles with smart generators. Integrated protection circuits prevent damage due to overload, overheating, and over- and under-voltage. If it does not detect any load, the inverter switches to energy-saving standby mode. It automatically turns back on when needed. Additional benefits include the quiet-running fan, ease of installation, and the remote control panel that comes as standard.
Advantages
- A pure sine wave with 230 V output voltage suitable for powering sensitive consumers
- Wide range for the incoming DC voltage, perfect for vehicles with EURO 6 emissions standard
- Energy-saving with automatic wake-up function via standby mode
- Easy to install in horizontal or vertical position
- Automatic restart after overload, over- or under-voltage
- The quiet-running fan is load and temperature controlled
- Remote control included as standard
Dimensions
- Product depth 340 mm
- Product height 97 mm
- Product width 272 mm
- Net weight 4.90 kg
Electrical
- Input voltage (DC) 12 V
- Output voltage 230 V
- Power consumption, no load 1.2 A
- Power consumption, standby mode 400 mA
Performance
- Energy efficiency >90%
- Continuous power at 25 °C 1500.00 W
- Operating temperature, min 0.00 °C
- Operating temperature, max 50.00 °C
