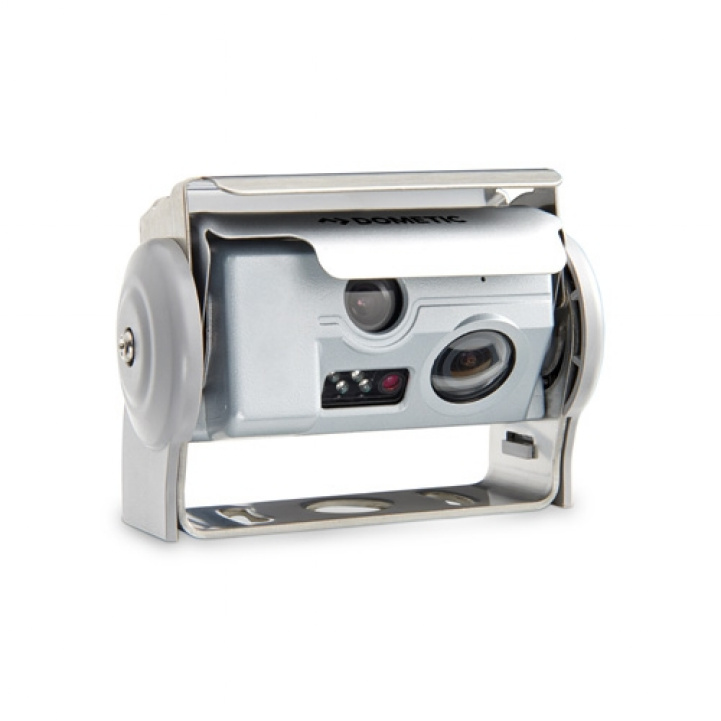

Unlike competing systems that use a (distorting) wide-angle lens in the rear view mode, the CAM 44 NAV has two separate camera modules. A 50° lens provides rear visibility when driving, and a wide-angle lens at 140° offers greater safety when reversing. The use of separate lenses ensures excellent image quality in both modes, while the electronic adjustment of brightness and the assisting LEDs guarantee the same image quality in all lighting conditions. The CAM 44 NAV can be easily connected to a navigation display – a corresponding adapter is included in the delivery.
• Two camera lenses make manoeuvring and parking much safer.
• 140° field of view at close range for safer reversing.
• 50° telephoto function for distant visibility behind the vehicle when driving forward.
• Motor-driven cover that protects the lens from dirt and damage.
• LED support for better night vision.
Technical specification:
Dimensions (WxHxD): 114 x 74 x 65 mm
Input voltage: 12 / 24V
IP class: IP68
Light sensitivity: <1 lux / 0 with LED lux
Light adjustment: Electronic
Diagonal field of view: 140° / 50° (short / long distance)
Horizontal field of view: 100° / 35° (short / long distance)
Vertical field of view: 72° / 28° (short / long distance)
Resolution: 290000 px
Video standard: PAL
Vibration resistance: 6 g
Operating temperature: -30°C-70°C
