Inverter with 1200VA output and built-in 25A 24V charger

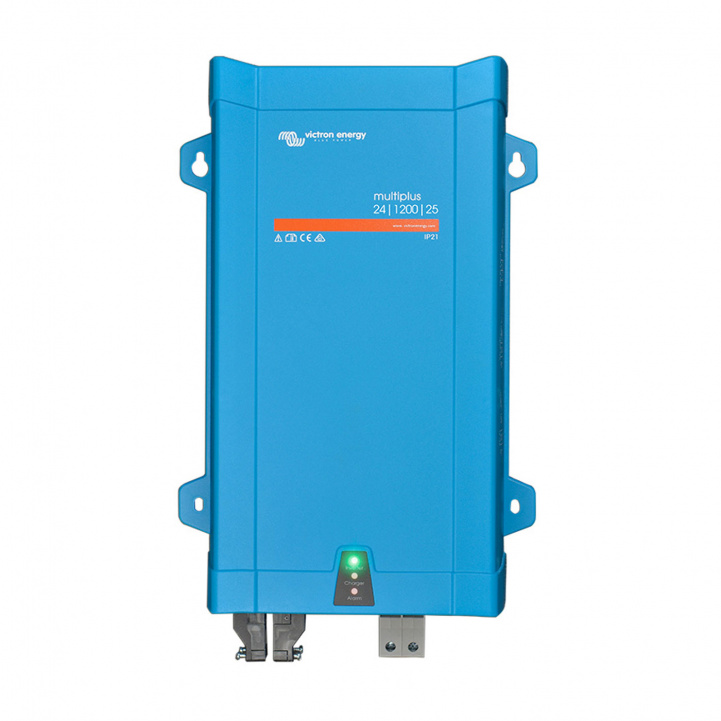

Inverter/charger Victron Phoenix MultiPlus 24/1200/25
- Works excellently with most generators
- High starting capacity for demanding loads
- Ideal for boats
The Phoenix Multi is more than just a box with a charger and an inverter working separately. Victron has taken technology much further by combining the charger and inverter into a single unit, a "power block." The transition between charging and inverting happens seamlessly, ensuring a smooth and uninterrupted power supply.
The Phoenix Multi 1200 can also be connected in series or parallel. Up to six units can be connected in parallel for increased power. Three units can be connected to a three-phase system (400 volts). This means there are virtually no limits to the system's size.
During installation, the unit must be programmed for the battery type being used and the power output that the generator can provide. This ensures optimal system functionality. Software can be downloaded for free from Victron’s website. For connection, a Victron Interface MK3 USB connected to a PC/laptop and an RJ45 network cable is required.
Specifications:
Charging current (amps): 25A
System voltage: 24V
Continuous power: 1200VA
Maximum power: 2400W
Self-consumption: 10W
Cable included: Yes
Cable length: 1.5 meters
Maximum current capacity from generator: 16A
Bluetooth: No
Brand: Victron Energy
